Description

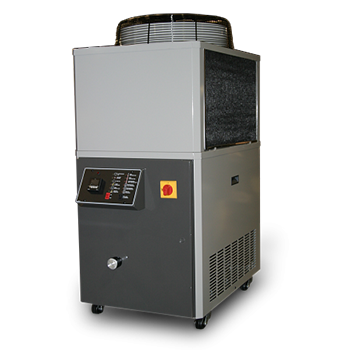

SMC Series. Packaged Chillers (2.0-3.5 HP).
PS Series Air-Cooled Packaged Chillers provide 2.0 to 3.5 hp cooling capacities with very compact footprints. These chillers feature a unique enclosure design that simplifies service and maintenance and conserves valuable production floor space. Incorporate these chillers into your planned or existing production layout easily and effectively. All PS Series Packaged Chillers have an operating leaving water temperature range of 30°F to 65°F (-1°C to 18°C).
Feautures
- Leaving water temperature range 35°F to 65°F (1.6°C to 18.3°C)
- 5 and 1.0 hp: hermetic reciprocating compressors
- 5hp: Hermetic scroll compressor
- Highly efficient tube-in-tube evaporators
- Aluminum fin/copper tube condensers
- Six (6) gallon (22.7 liter) polyethylene tank with external fill/drain sight glass
- Non-ferrous piping
- Regenerative turbine, horizontally mounted pump
- Microprocessor based PID controller with autotuning and To Process and Set Point LED readout
- Pressure-actuated process water bypass valve for system protection
- To Process 2.5” (63 mm) diameter, dual scale liquid-filled water pressure gauge
- Fully insulated refrigeration and process piping
- HFC-134a refrigerant
- NEMA 1 electrical enclosure
- Fully insulated pump and evaporator
- High and low refrigerant pressure safety switches
- Hot gas bypass capacity control
- Thermal expansion valve
- Refrigerant sight glass and filter dryer
- Ease of maintenance with multiple refrigeration access ports
- 1 year warranty on parts
