Description

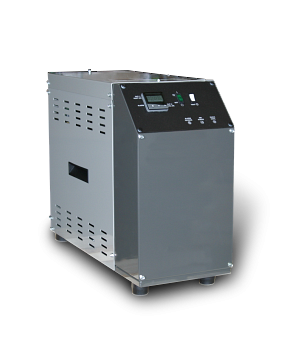

Micro Series. Water Temperature Control Unit.
For production applications requiring exact temperature control in limited spaces, nothing measures up to Micro Series Water Temperature Control Units from Sterling. Micro Series Water Temperature Control Units have an operating leaving water temperature range of 32°F up to a maximum of 250°F (0°C to 121°C).
Each Micro Series TCU delivers huge performance in a compact package. Available with heater configurations in 3kW, 6kW or 9kW, these units provide consistent and reliable heating – just the kind of innovation you expect from the leader in temperature control.
Feautures:
- 1/16 DIN microprocessor based PID controller
- Non-ferrous construction
- Easily removable panels for quick access to internal components
- Incoloy™ immersion heater with IEC contactors
- Pressure switch set at 150 psig
- NEMA 1 electrical enclosure
- 250°F (121°C) maximum operating temperature
- Motor Circuit Protector
- Independent high tempature safety thermostat
- 3/4” on all connections
- 1/2 – 3/4 hp process pumps with silicone carbide seals
- 1 year parts and labor warranty at the factory
- 3 year controller warranty
