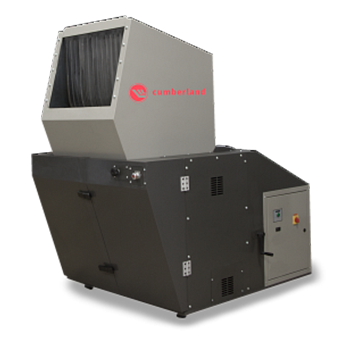

CUMBERLAND 1600 BTP Series Granulator

Description

1600 BTP Series Beside-the-Press Granulators offer solutions for processing edge trim, runners, and rejects in a compact footprint.

Standard Features

1. Cutting Chamber size up to 16″x40″ (40.6cm x 101.6cm)
2. Throughput: 900 lbs/hr to 1800 lbs/hr (408kg/hr to 818 kg/hr)
3. 3 knife open rotor design for efficient size reduction
4. Rotating end discs for minimized friction and low heat granulation
5. NEMA 12 Controls
6. 3/6″, 1/4″, and 5/16″ screens
7. Safety interlocks
8. Low-profile, sound attenuated infeed system
9. Machined, bolted cutting chamber for simplified cleaning
10. Drop-down cradle for quick removal and maintenance
11. Discharge bin

Typical Applications

1. Injection molded runners and rejects
2. Blow-molded parts and tops/tails
3. Extruded tubes and profiles
4. Edge trim from sheet extrusion
